B Series 15-Inch CNC Milling System (Vertical)
800MB4-V
Follow frequency：次
Product type：800M Series
Follow frequency：次
Product type：800M Series
Product Introduction
1. High-definition LCD display
2. Supports 5-axis simultaneous tool tip follow function
3. Supports multi-axis multi-channel milling machine control
4. Five-axis machine automatic measurement:
Works with tool setter for automatic tool length measurement;
Works with touch-trigger probe for automatic measurement of rotation center and rotation vector;
Combined with 5-axis RTCP rotation vector compensation, effectively solves machining accuracy issues caused by tilted rotary axes.
5. Supports inclined plane machining
6. Supports optional IoT for real-time acquisition of machining data, facilitating easier management
Hardware Introduction
1. Multi-core CPU architecture with ultra-high computing power platform for smoother operation.
2. Equipped with 2GB storage space for smooth program execution, easily handling diverse tasks.
3. High anti-interference design, passed 4.5KV EFT testing and CE certification.
4. Supports highly stable RS485 communication for more reliable peripheral device expansion.
5. Supports high-speed USB 3.0 communication for faster data backup and program import.
6. Supports long-duration power-off data retention, ensuring reliable real-time user data recording.
7. Uses high-resolution color display for clearer visuals.
8. Supports up to 128 IO points.
9. Equipped with high-performance CPU as the core computing unit of the CNC system, responsible for processing and executing various CNC instructions, programs, and data operations. The high-performance CPU can quickly respond and process large volumes of instructions, ensuring system real-time performance and efficiency.
10. Pre-read block capacity of 8000 Blocks/s
11. Auxiliary panel features rotary knob for scale switching and digital tube display of the current tool number, making operation more convenient.
12. Supports TCP/IP communication protocol
Software (Function) Introduction
1. RT-Linux embedded control system platform
2. Fully compiled execution module
3. Configurable IoT development platform
4. Remote assistance for fault diagnosis and upgrades
5. Platform-based design concept
6. 64-bit high-speed and high-precision contour control
7. Conventional graphic dialog-based auxiliary program editing
8. Special curve machining: supports constant linear velocity processing of parabolas and spline curves for improved surface finish
9. Fast execution speed: short PLC scan time for rapid response to machining commands, improving efficiency
10. Supports 5-axis simultaneous 5-linkage RTCP function
11. Supports optional visual inspection function
12. Supports optional CAD/CAM function to simplify planar machining
13. The 800 series controller can support up to 10 high-speed tapping modules, achieving multi-product output on a single machine. The same program can specify tapping spindles as needed and combine tapping processes to improve productivity.
14. The system integrates motor encoder feedback signals and linear scale feedback signals for real-time compensation to reduce the impact of mechanical clearance and ensure high mechanical positioning accuracy.
Featured Functions

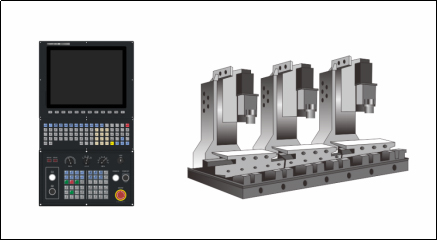

1.Multi-spindle tapping
Advanced controller supports up to 10 high-speed tapping modules, achieving multi-product output on a single machine. The same program can designate tapping spindles as needed and combine tapping for increased efficiency.

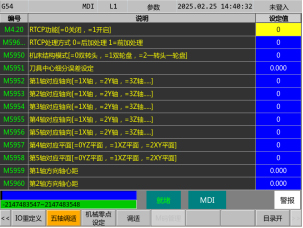

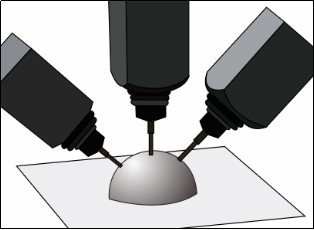

2.Tool tip control RTCP function
The controller provides 3D tool length compensation. Customers only need to calculate workpiece contour coordinates in CAM software; the system automatically computes the tool tip position, ensuring the tool tip stays on the machined contour surface.

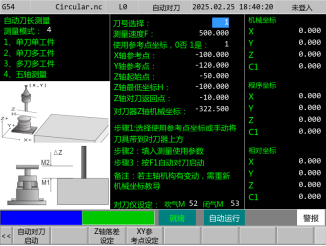

3.Five-axis machine automatic measurement function
Combined with 5-axis RTCP rotation vector compensation, effectively solves machining accuracy loss caused by rotary axis tilt.
Works with touch-trigger probe for automatic measurement of rotation center and rotation vector.

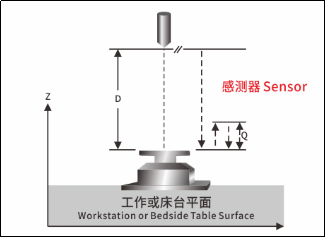

Works with tool setter for automatic tool length measurement.

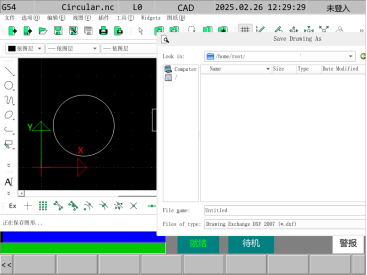

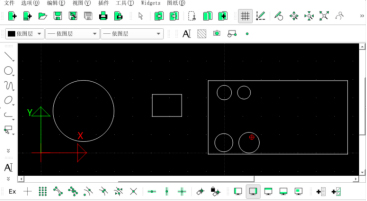

4.CAD intelligent drawing module
Enables CAD graphic drawing, allowing quick and easy drawing. Connected with CAM modules, it can complete various machining tasks and improve programming efficiency.

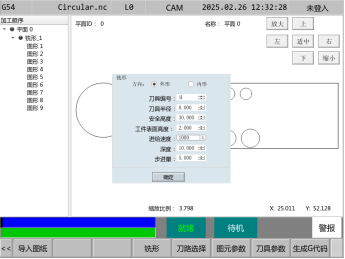

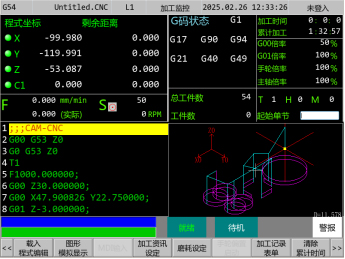

5.CAM intelligent editing module
Supports CAD graphic and machine system interconnection and dialog-based graphical editing. Imports 2D graphics into the system, edits them, and generates corresponding G-code to achieve milling, slotting, drilling, and tapping.
Product Series | 400M | 600M | 800M | |||
Function Selection | 400MA | 600MB | 800MC | |||
Product Model | 400MA1-H | 400MA2-H(V) 400MA3-H(V) 400MA4-V | 600MB2-H(V) | 600MB3-H(V) 600MB4-V | 800MC2-H(V) | 800MC3-H(V) 800MC4-V |
? System Specifications | ||||||
Installation Method | Horizontal | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal |
Display Screen Size | 7-inch | 8-inch / 10.4-inch / 15-inch | 8-inch / 10.4-inch / 15-inch | 8-inch / 10.4-inch / 15-inch | 8-inch / 10.4-inch / 15-inch | 8-inch / 10.4-inch / 15-inch |
Maximum Number of Axes (Including Spindle) | Standard 6 (maximum 6) | Standard 4 (maximum 6) | Standard 7 (maximum 14) | Standard 7 (Max 14) | Standard 7 (Max 28) | Standard 7 (Max 28) |
Maximum Number of Channels | Standard 1 (maximum 1) | Standard 1 (maximum 1) | Standard 1 (maximum 2) | Standard 1 (Max 2) | Standard 7 (Max 4) | Standard 7 (Max 4) |
Maximum Number of Linked Axes per Channel | 4 (XYZA) | 4 (XYZA) | 5 (XYZAB or XYZAC or XYZBC) | 5 (XYZAB or XYZAC or XYZBC) | 5 (XYZAB or XYZAC or XYZBC), with RTCP | 5 (XYZAB or XYZAC or XYZBC), with RTCP |
Maximum Number of Spindles per Channel | Standard 1 (maximum 1) | Standard 1 (maximum 1) | Standard 1 (maximum 3) | Standard 1 (Max 3) | Standard 1 (Max 10) | Standard 1 (Max 10) |
Application Scenarios (Axis Distribution) | Economic milling machines, simple milling machines, turret mills, desktop milling machines, drilling and tapping machines: | Machining centers, drilling and tapping machines: | Five-axis five-axis simultaneous machining center (with RTCP), multi-channel milling machine (three channels or more): | |||
DA/AD | Optional Expansion | Optional Expansion | Optional expansion | Optional expansion | Optional Expansion | Optional Expansion |
Operating System | LinuxRT | LinuxRT | LinuxRT | LinuxRT | LinuxRT | LinuxRT |
Memory | 1GB | 2GB | 2GB | 2GB | 2GB | 2GB |
Program Capacity | 4GB | 4GB | 8GB | 8GB | 8GB | 8GB |
Lookahead Blocks | 1000 blocks/second | 1000 blocks/second | 2000 blocks/s | 2000 blocks/s | 8000b/s | 8000b/s |
Maximum Tool Compensation Groups | 160 groups | 160 groups | 160 groups | 160 groups | 160 groups | 160 groups |
Communication/Transfer | USB / RS485 / LAN / WIFI | USB / RS485 / LAN / WIFI | USB/RS485/LAN/WIFI | USB/RS485/LAN/WIFI | USB/RS485/LAN/WIFI | USB/RS485/LAN/WIFI |
Bus Functions | EtherCAT Bus | MECHATROLINK-III (optional), EtherCAT | MECHATROLINK-III (optional), EtherCAT | MECHATROLINK-III (optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT |
Standard I/O | I16 / O16 | I16 / O16 | I16/O16 | I16/O16 | I16/O16 | I16/O16 |
Maximum Expandable I/O | I32 / O32 | I32 / O32 | I64/O64 | I64/O64 | I128/O128 | I128/O128 |
(IoT) Industrial Internet of Things | Optional | Optional | Optional | Optional | Optional | Optional |
Absolute Value Function | EtherCAT | MECHATROLINK-III, EtherCAT, MODBUS 485, SSI Absolute Encoder | MECHATROLINK-III / EtherCAT / MODBUS485 / SSI Absolute Encoder | MECHATROLINK-III / EtherCAT / MODBUS485 / SSI Absolute Encoder | MECHATROLINK-III / EtherCAT / MODBUS485 / SSI Absolute Value | MECHATROLINK-III / EtherCAT / MODBUS485 / SSI Absolute Value |
? Program Functions | ||||||
Programming Instructions (G-Code) | Compliant with International Standards | Compliant with International Standards | Compliant with International Standards | Compliant with International Standards | Compliant with International Standards | Compliant with International Standards |
Macro Program Programming Standard | Supported(Macro B、Macro C) | Supported(Macro B、Macro C) | Supported(Macro B、Macro C) | Supported(Macro B、Macro C) | Supported(Macro B、Macro C) | Supported(Macro B、Macro C) |
Background Programming | Supported | Supported | Supported | Supported | Supported | Supported |
Interactive Intelligent Programming | Supported | Supported | Supported | Supported | Supported | Supported |
Program Transfer via USB Drive | Supported | Supported | Supported | Supported | Supported | Supported |
Automatic Program Error Checking | Supported | Supported | Supported | Supported | Supported | Supported |
Program Lock Function | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) |
? Compensation Functions | ||||||
Five-Axis Tool Tip Control (RTCP) | Not Supported | Not Supported | Not Supported | Not Supported | Supported | Supported |
Smooth Tool Tip Function (Smooth TCP) | Supported | Supported | Supported | Supported | Supported | Supported |
? Compensation Functions | ||||||
Taper Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Backlash Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Arc Corner Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Bidirectional Screw Error Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Feedforward Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Dual Motor Drive Backlash Elimination | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Ram Deflection Compensation | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
? G-code Instructions | ||||||
High-precision trajectory control mode | Supported | Supported | Supported | Supported | Supported | Supported |
Path smoothing mode | Supported | Supported | Supported | Supported | Supported | Supported |
NURBS curve interpolation | Supported | Supported | Supported | Supported | Supported | Supported |
Thread cutting | Supported | Supported | Supported | Supported | Supported | Supported |
Tool offset | Supported | Supported | Supported | Supported | Supported | Supported |
High-speed peck drilling cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Left-hand tapping cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Fine boring cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Drilling cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Drill-bottom dwell cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Peck drilling cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Tapping cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Drilling cycle | Supported | Supported | Supported | Supported | Supported | Supported |
High-speed drilling cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Semi-automatic fine boring cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Drill-bottom dwell boring cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Multiple sets of high-speed and high-precision parameters | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
? High-speed and high-precision | ||||||
Spindle (C) Axis Dynamic Positioning | No-stop switching; direct execution of positioning (requires servo spindle) | No-stop switching; direct execution of positioning (requires servo spindle) | No-stop switching; direct execution of positioning (requires servo spindle) | No-stop switching; direct execution of positioning (requires servo spindle) | No-stop switching; direct execution of positioning (requires servo spindle) | No-stop switching; direct execution of positioning (requires servo spindle) |
Continuous Block Execution Mode | Supported | Supported | Supported | Supported | Supported | Supported |
CONSTANT JERK Control | Supported | Supported | Supported | Supported | Supported | Supported |
Automatic Angle Rotation Control | Supported | Supported | Supported | Supported | Supported | Supported |
Arc Radius Speed Limitation | Supported | Supported | Supported | Supported | Supported | Supported |
NURBS Fitting | Supported | Supported | Supported | Supported | Supported | Supported |
Full Closed-Loop Control Function | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
? Auxiliary Functions | ||||||
Custom startup screen | Supported | Supported | Supported | Supported | Supported | Supported |
Custom M-codes | Supported | Supported | Supported | Supported | Supported | Supported |
Custom G-codes | Supported | Supported | Supported | Supported | Supported | Supported |
Mixed use of bus axes and general-purpose axes | Not Supported | Supported | Supported | Supported | Supported | Supported |
IO redefinition function | Supported | Supported | Supported | Supported | Supported | Supported |
Tilt axis machining | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Tilt plane machining | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
DNC machining | Supported | Supported | Supported | Supported | Supported | Supported |
Proportional scaling | Supported | Supported | Supported | Supported | Supported | Supported |
Acceleration and deceleration types | Linear (constant A), S-curve (constant JERK) | Linear (constant A), S-curve (constant JERK) | Linear (constant A), S-curve (constant JERK) | Linear (constant A), S-curve (constant JERK) | Linear (constant A), S-curve (constant JERK) | Linear (constant A), S-curve (constant JERK) |
Tool life management | Time limit / count limit management | Time limit / count limit management | Time limit / count limit management | Time limit / count limit management | Time limit / count limit management | Time limit / count limit management |
Protection functions | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection |
Gear prediction | Manual pulse generator (MPG) lookahead / MPG backtrack function | Manual pulse generator (MPG) lookahead / MPG backtrack function | Manual pulse generator (MPG) lookahead / MPG backtrack function | Manual pulse generator (MPG) lookahead / MPG backtrack function | Manual pulse generator (MPG) lookahead / MPG backtrack function | Manual pulse generator (MPG) lookahead / MPG backtrack function |
Gear insertion break detection | Supported | Supported | Supported | Supported | Supported | Supported |
Restart function | Automatic breakpoint search and restart, customized restart | Automatic breakpoint search and restart, customized restart | Automatic breakpoint search and restart, customized restart | Automatic breakpoint search and restart, customized restart | Automatic breakpoint search and restart, customized restart | Automatic breakpoint search and restart, customized restart |
Multi-function handwheel | Supported | Supported | Supported | Supported | Supported | Supported |
Graphic simulation | Graphical preview before program execution, dynamic path tracing during execution | Graphical preview before program execution, dynamic path tracing during execution | Graphical preview before program execution, dynamic path tracing during execution | Graphical preview before program execution, dynamic path tracing during execution | Graphical preview before program execution, dynamic path tracing during execution | Graphical preview before program execution, dynamic path tracing during execution |
Access control management | Parameter access management | Parameter access management | Parameter access management | Parameter access management | Parameter access management | Parameter access management |
Perpetual calendar lock | Supported | Supported | Supported | Supported | Supported | Supported |
Axial load monitoring | Supported | Supported | Supported | Supported | Supported | Supported |
Oscilloscope function | Real-time Monitoring of System Commands and Servo Feedback Waveforms | Real-time Monitoring of System Commands and Servo Feedback Waveforms | Real-time Monitoring of System Commands and Servo Feedback Waveforms | Real-time Monitoring of System Commands and Servo Feedback Waveforms | Real-time Monitoring of System Commands and Servo Feedback Waveforms | Real-time Monitoring of System Commands and Servo Feedback Waveforms |
Following error detection | Supported | Supported | Supported | Supported | Supported | Supported |
Spindle speed arrival detection | Supported | Supported | Supported | Supported | Supported | Supported |
Data backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup |
Quick tap retract for tapping | Supported | Supported | Supported | Supported | Supported | Supported |
Diverse tool magazines | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine |
Automatic tool alignment | Supported | Supported | Supported | Supported | Supported | Supported |
? Compound Functions | ||||||
Multi-channel Function | Not Supported | Not Supported | Supported (optional) 16 channels | Supported (optional) 16 channels | Supported (optional) 16 channels | Supported (optional) 16 channels |
Multi-spindle Tapping | Not Supported | Not Supported | Maximum supported simultaneous tapping on 10 spindles | Maximum supported simultaneous tapping on 10 spindles | Maximum supported simultaneous tapping on 10 spindles | Maximum supported simultaneous tapping on 10 spindles |
Independent Channel Control for Robotic Arm | Not Supported | Not Supported | Supported (optional) path planning using G-code | Supported (optional) path planning using G-code | Supported (optional) path planning using G-code | Supported (optional) path planning using G-code |
? Tool | ||||||
IoT | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) |
Vision Inspection | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) |
CAD/CAM | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) |
